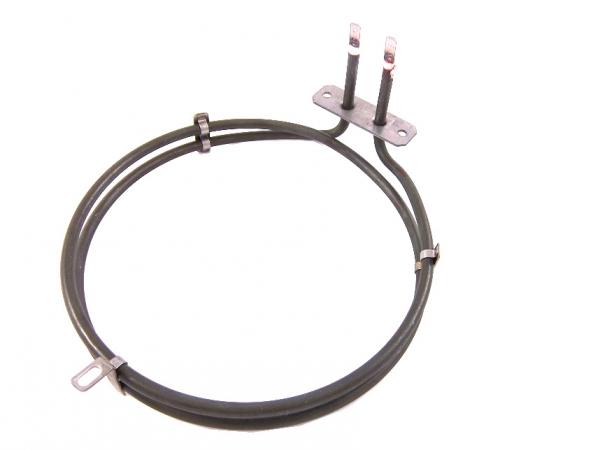

Ram next Direction Fan Oven Element 2000W – ELE9323
Ram next Direction Fan Oven Element 2000W
Part number: ELE9323, 2145966CO
Specifications:
Power = 2000 watts
Voltage = 240 volts AC
Element height = 215 mm
Element width = 193 mm
Bracket length = 70 mm
Distance between tag centres = 24 mm
Manufacturers names and numbers are used for reference only. This is a pattern part not the manufacturers genuine part.
Suitable for the following Ram Next Dimension models:
APSCFO/AV (854141215040), APSFO/02/RG (854184015020), APSFO/WH (854141115010), APDFO/2/AV (854184115000), APSCFO/BR (854141215000),
APSFO/02/WH (854184015010), APSFO/WH (854141115040), APDFO/2/RG (854184115020), APSCFO/BR (854141215020), APSFO/AV (854141115060),
APSFO/WH (854141115070), APDFO/2/WH (854184115010), APSCFO/GR (854141215010), APSFO/BR (854141115000), APVFO/AV (854146315000), APDFO/BR (854141315000), APSCFO/GR (854141215030), APSFO/BR (854141115030), APVFO/RG (854146315020), APDFO/WH (854141315010),
APSCFO/RG (854141215050), APSFO/GR (854141115020), APVFO/WH (854146315010), APSCF0/1/AR (854141215060), APSFO/02/AV (854184015000),
APSFO/GR (854141115050), APSCF0/1/NA (854141215070), APSFO/02/IX (854184015030), APSFO/RG (854141115080).
APSFO/02/WH (854184015010), APSFO/WH (854141115040), APDFO/2/RG (854184115020), APSCFO/BR (854141215020), APSFO/AV (854141115060),
APSFO/WH (854141115070), APDFO/2/WH (854184115010), APSCFO/GR (854141215010), APSFO/BR (854141115000), APVFO/AV (854146315000), APDFO/BR (854141315000), APSCFO/GR (854141215030), APSFO/BR (854141115030), APVFO/RG (854146315020), APDFO/WH (854141315010),
APSCFO/RG (854141215050), APSFO/GR (854141115020), APVFO/WH (854146315010), APSCF0/1/AR (854141215060), APSFO/02/AV (854184015000),
APSFO/GR (854141115050), APSCF0/1/NA (854141215070), APSFO/02/IX (854184015030), APSFO/RG (854141115080).
