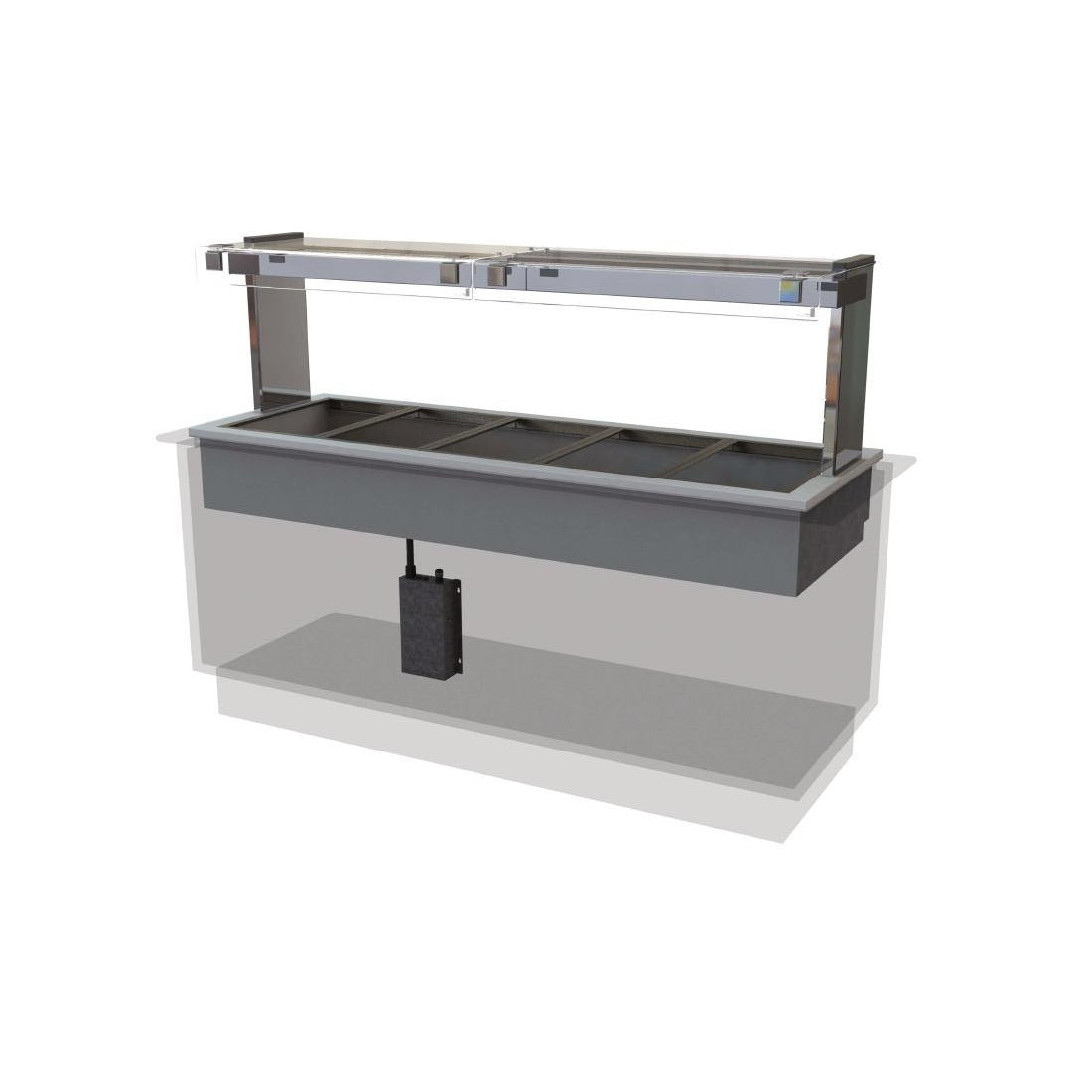

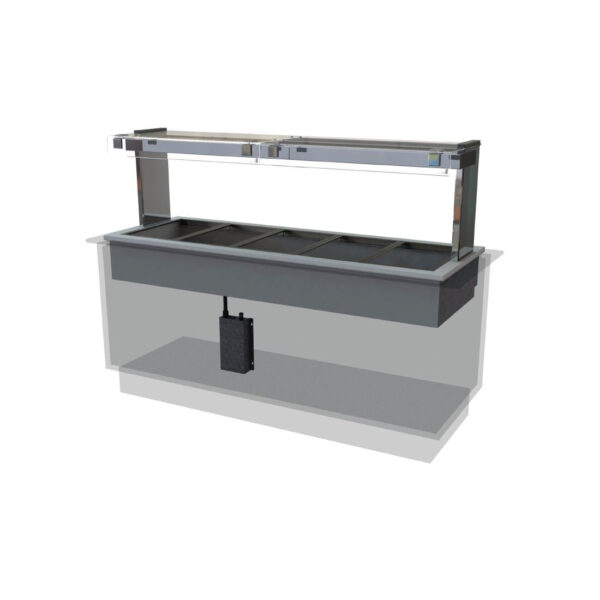

CED Kubus Drop In Dry Heat Bain Marie KHBM5
Display, illuminate, heat and protect pre-cooked food with CED’s rectangular shaped Kubus self help dry heat bain marie drop in display. This 5/1 GN size hot display features a 5/1 GN heated tank area and individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep . The display fits into a pre-formed cut out made in a countertop. The self help superstructure is made from bright polished steel and aluminum rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted and ‘locked’ from the operator side of the gantry, by digital temperature display (control panel) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation and is factory set to hold food core at 85°C. Modular removable heater element covers in the heated well give even heat spread and make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box and 2M flexible electrical conduit for hard wiring to a 20 Amp, 230v 4.0KW supply. GN’s Sold Separatley.
